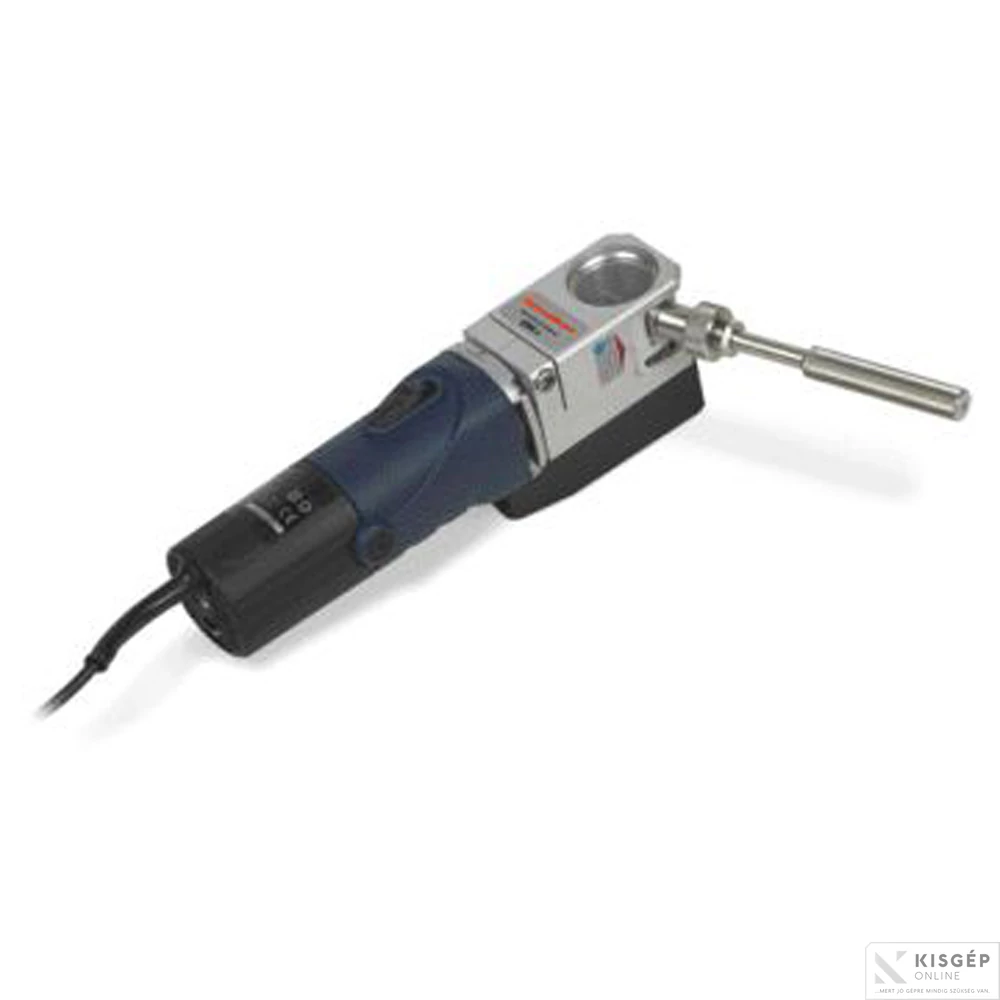

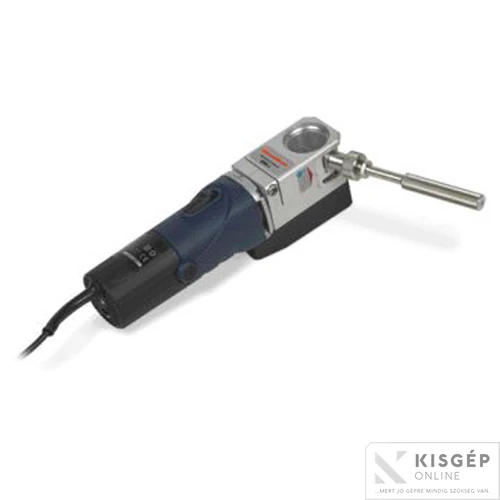

Optimum Wolframköszörű EG-1 elektr.átm.1-4,0mm 15°-180° P3 szűrővel

ESG-1 elektrodenschleifgerate
elektródaátméro: 1,0-4,0mm
min. 15mm elektródahossz
fordszám 7000-32000 ford/perc
átm 40mm-es tárcsa
motorteljesítmény: 850Watt
Szerszámokkal kofferben
Electrode grinding device ESG 1-bestwelding results
due to optimum grinded electrodes.
· For grinding ofelectrodesfrom 1.0-4.0 mm
· Minimum grinding ofthe materialatthe electrode
ofonly0.3 mm concerning integrated setting gauge
· Therefore, the electrode maybe regrinded up to
200 timesinstead ofonly50-100 times
· No annealing when grinding
· Integrated suction with P3 dustfilter, therefore the
user isperfectlysafe-guarded
· Optimized for use in the workshop
and for assembly
· Precision controlofthe electrode inside a tool
holder
· Also for startgrinding ofshortelectrodes(up to 15
mm) e.g. for orbitalwelding devices
· Bysimple setting you mayuse 3 grinding levelsof
the diamond disk, thusthe service life ofthe
diamond diskisthree timeslonger
· Continuouslyvariable grinding angle of15-180°
· You mayalso directlygrind electrodeswith metal
drops, which savestime and preventsthe
electrode from breaking
· High-performance engine of650 watts
Scope of delivery ESG 1
·
Driving motor
·
Grinding spindle with filter case
and filter
·
Electrode holders
·
Diamond disk Ø 40 mm
·
Collet chucks for electrodes
1.6/2.4/3.2 mm
·
Operating tools, 2 x Allen key
8/4 mm, 2 x wrench 13-17/13-14
·
Sanitation bag for disposable filter
·
In plastic case
Technical data
Electrode Ø 1.0-4.0 mm
Grinding angle continuouslyvariable 15°-180°
Electrode length min. 15 mm
Capacity 650 watts
Currentsupply 230 volts
Revolutionsinfinitelyvariable 8.000-32.000 1/min
Diamond disk Ø 40 mm
Weight 2.5 kg
